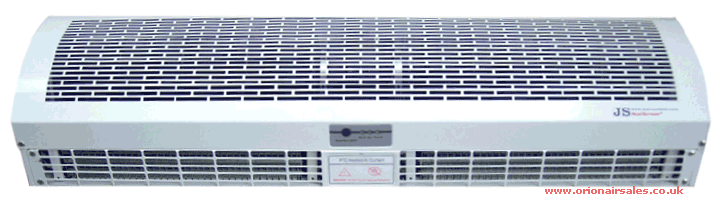

This Heat Screen overdoor air curtain is easy to install, only requires a single phase 240V power supply and has an integral control system. This makes it ideally suited to small shop entrances, cafés, restaurant, hotel or other public entrance where an over-door heater is not sufficient but a three-phase over door air curtain is too expensive.

The Heat Screen overdoor air curtain is an excellent value, high performance unit. It can provide up to 9kW of heat to an area with 1,670m3/h of air flow. Available in lengths of 90, 120 and 150cm the Heat-Screen is ideal for use in shop, restaurant, hotel and public doorway. For wider doorways more than one unit can be flush mounted next to another. A handheld remote makes control very convenient.

The unit can be run with or without the heating elements on, enabling the air curtain to be used in the summer to keep in air conditioned air as well as in the winter to keep in heated air. The wire elements will reach temperature in just 10 seconds unlike other air curtains that can take up to two minutes to reach temperature.

When the unit has been in heating mode and is turned off, it will run-on for three minutes to remove residual heat from inside the unit. This is indicated by a flashing red light on the control panel. The unit has an overheat protection safety cut-out. The HeatScreen over-door air curtain is supplied with a 2m electrical lead and is designed to be used with a single phase power supply.

Key Product Features:

High performance

Economic to run

Three lengths in the range

Single phase power 240V

Remote control operation (see picture)

Fast acting heating elements

Safety overheat protection

3 minute run-on to remove residual heat

One year warranty

Product Technical Data:

Dimensions: L1200mm x H221mm x D183mm
Weight: 18.1kg
Fan power: 215W
Heating power: 7.2kW
Current: 33A (fused isolator)
Voltage: 230V / 50Hz
Air velocity: 6-7m³/h
Air flow: 1,280m³/h
Noise: 63dB
Product code: RM125-12-D/Y-A

This makes it ideally suited to small shop entrances, cafés, restaurants, hotels or other public entrances where an overdoor heater is not sufficient

Standard Electric Air Curtains

Over-door heater fans are ideal for installation in shop doorways and business reception areas; in fact anywhere you want to limit heat loss or temperature fluctuations where an exterior door is frequently in use. With 2 heat settingsand a fan only setting, most of out range feature a wide oscillating angle for generous heat distribution.

EH1464 2 kW PTC Over-Door Heater/Fan with Remote Control and Timer 240V~50Hz
