The Red Giant and Blue Giant range of industrial electric heaters are manufactured to a high standard in the UK. All heaters come with 1 years warranty and are available in a large output range in either single phase and three phase.
Red Giant Series light Industrial Electric Heater:
The
Red Giant Series as been developed to out perform and out last
cheap imports. Available in either 12kw or 20kw versions
both offer full and half heat settings, over-temp protection and
an optional thermostat. Designed with affordability in
mind this range is ideally suited to light industrial
applications such as small warehouses and industrial units.
As with everything we make these heaters are built to last and a
tough steel body gives them the durability missing from the
competition.Blue Giant Series Industrial Electric Heater:

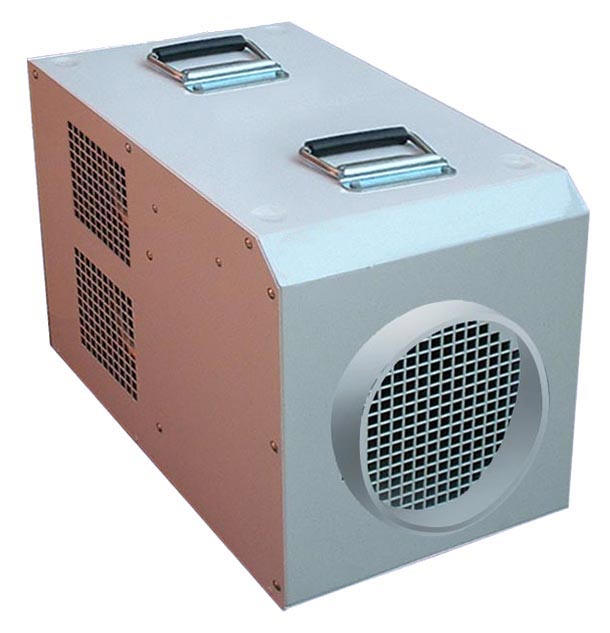

Previously known as the FF3, FF13 and FF29 this is
the flagship and most popular series in the range.
Defined by its large heat output, whisper quiet operation and
unrivalled
durability the Blue Giant Series has become industry standard
over the last few years and can be found in many of the
continents most established hire fleets.
However we understand that if you're not moving forward you're
going backwards. So with that in mind the Blue Giant Series has
been upgraded this year with a number of unique features: 29kW
of heat from a 32a supply, 14kW from a 16a supply and 3kW from a
13a supply. NO OTHER RANGE OFFERS THIS. The ability to heat up
to four area's from one heater or deliver warm air down 15m of
ducting
unrivalled
durability the Blue Giant Series has become industry standard
over the last few years and can be found in many of the
continents most established hire fleets.
However we understand that if you're not moving forward you're
going backwards. So with that in mind the Blue Giant Series has
been upgraded this year with a number of unique features: 29kW
of heat from a 32a supply, 14kW from a 16a supply and 3kW from a
13a supply. NO OTHER RANGE OFFERS THIS. The ability to heat up
to four area's from one heater or deliver warm air down 15m of
ductingSuper Giant Series Industrial Electric Heater:
When
large quantities of portable heat are required the Super Giant
Series is without pier. Already a familiar face across some of
the continents most demanding industrial sites with its brick
out house construction and powerful heat delivery system
the Super Giant series can pump over 100kW of heat down over
100m of duct. With a number of safety features such as full
phase protection, an innovative heat purge system and multistage
controls that can be adapted to suit any application these
impressive heaters can deliver a ΔT (temperature rise) of over
100oC at up to 10000m3/hr and 5000pa. To
withstand the toughest of applications there's machine formed
steel construction and an oven hardened finish that means
they're left standing no matter what.
Technical Data:
| FF13 | FF20 | |
| Nominal Heat Output | 12.7kW | 20kW |
| Supply | 400v 16a 3ph | 400v 32a 3ph |
| HxWxD (mm) | 425x345x295 | 460x390x400 |
| Max Airflow | 1200m3/hr | 1850m3/hr |
| Weight | 15kG | 20kG |
| FF3 | FF13 | FF29 | |
| Nominal Heat Output | 3kW | 13.9kW | 28.9kW |
| Supply | 115v/230v 32a/13a 1ph | 400v 16a 3ph | 400v 32a 3ph |
| HxWxD (mm) | 360x300x330 | 380x300x450 | 570x400x520 |
| Max
Airflow/Pressure |
423m3/hr 80pascals | 1017m3/hr 400pascals | 2028m3/hr 400pascals |
| Weight | 10kG | 18kG | 36kG |
| Max Duct/Outlets | 3m/1 | 5m/2 | 10m/4 |

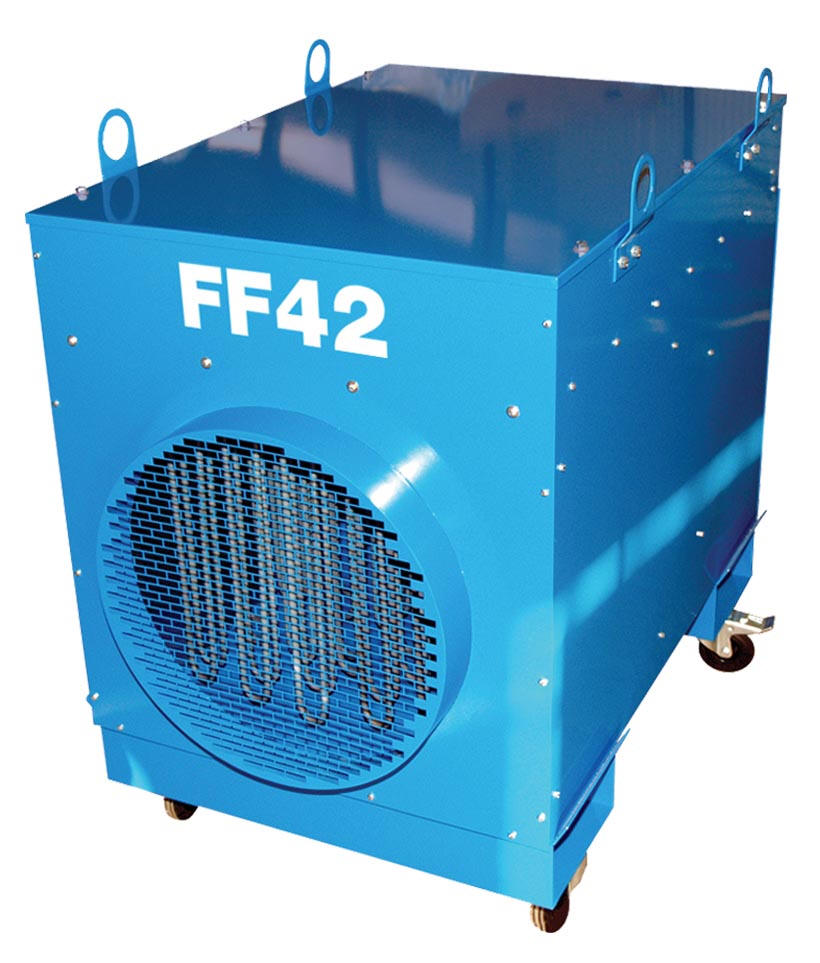

| FF42 | FF80 | FF100+ | |
| Nominal Heat Output | 43kW | 80kW | 100+kW |
| Supply | 400v 63a 3ph | 400v 125a 3ph | 400v 125a 3ph |
| HxWxD (mm) | 1000x700x1100 | 1000x700x1650 | 1000x700x2500 |
| Max Airflow/Pressure | 4000m3/hr 600pascals | 9500m3/hr 600pascals | 5000m3/hr 5000pascals |
| Weight | 113kG | 200kG | Approx 500kG |
| Max Duct Lenght | 30m | 100m | 100m+ |
| Mains Cable | 5m 16mm2 4 core | Appliance Inlet | Appliance Inlet |
| Phase Protection | Yes | Yes | Yes |
